Dynamic QR code access control, Bluetooth access control, dynamic QR code reader,Free API APP,Support firmware modification
- Reading Type: QR Code , Bar code , IC Card ,NFC Card,DES Fire(CPU Card),EV2, Bluetooth（optional ）
- Communication interface: TCP、RS485、RS232 WG 26 、WG34
- Keypad : Dynamic pass word open door
- Outdoor waterproofing level: IP68
Download
| Reading Mode | CMOS | Vertical Reading Angle | 360° |
| Reading Code | QR Code(On screen/paper) | Camera Reading Range | Up and down\left and right 80° |
| Reading accuracy | ≥ 5mil | Operating Voltage | DC 5~12V |
| Reading Distance | 2.5~20cm | Communication Interface | RS485, Wiegand 26/34,TCP/IP（Optional） |
| Comes with a filling light, automatically fills light when dark | QR Code Recognition Time | Less than 0.5 second | |
| Support reading dynamic variable QR code, output fixed ID (for access control/gate) | Support simultaneous dual output | Wiegand outputs fixed ID, RS485 output source data | |
| Card Reading Type | Mifare one (IC Card), Mobile Phone NFC,DESFire(CPU Card),FM1208(CPU Card) | Card Reading Distance | 3～6cm |
| Card Reading Time | ≤0.3s | Machine Dimensions | 130mm*48mm*13mm |
| Body material | Aluminum alloy + tempered optical glass panel | Successful Reading Notification | Buzzer |

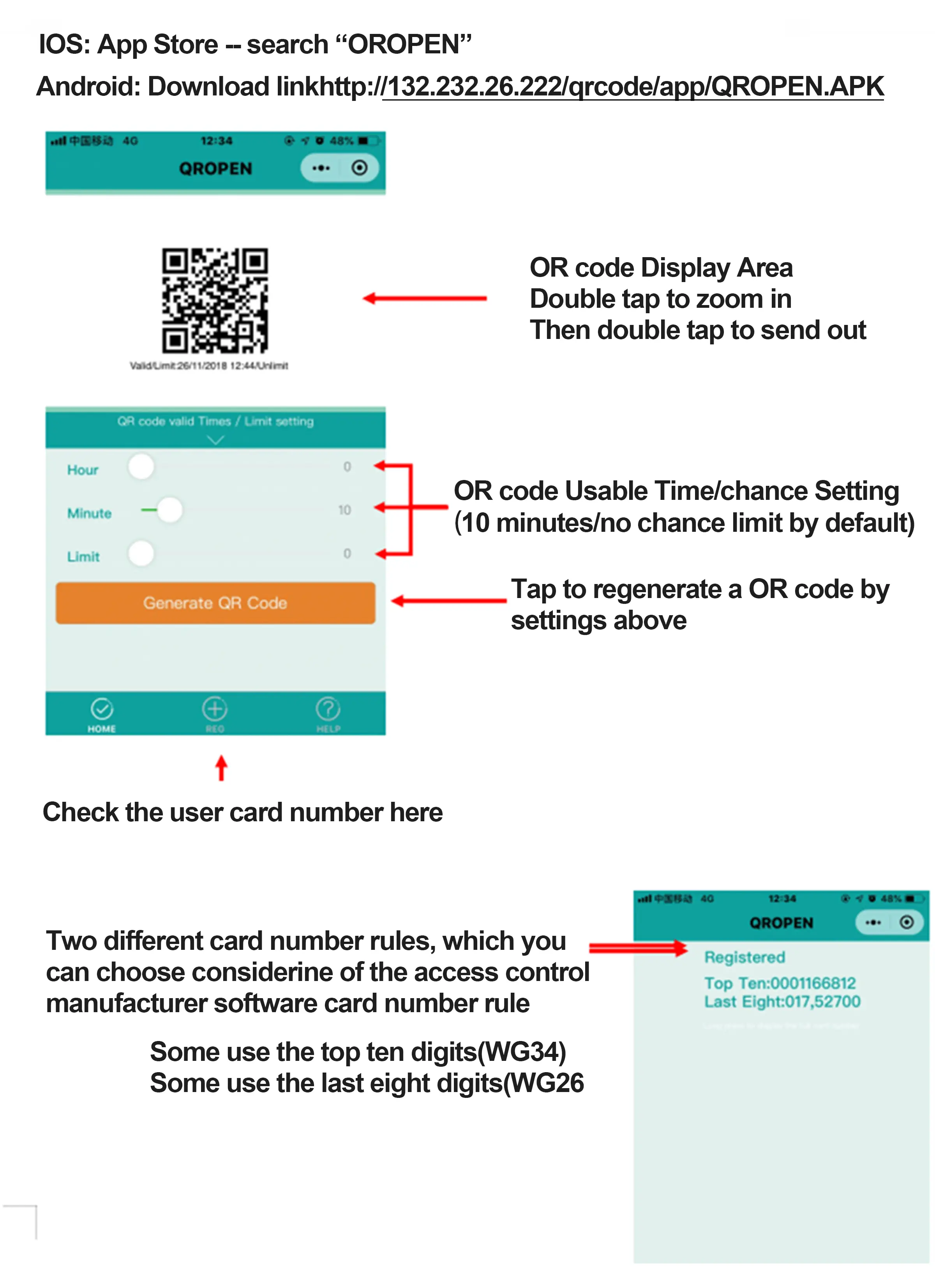

| The scanner comes with a WeChat applet that generates time and chance limited dynamic QR codes, which can be screenshotted and sent to guests. | Maximum amount of IC cards binding applet QR code | 20,000 (Read QR code and output IC card number) | |
| The system does not need to connect to the network or a cloud platform and server, and the applet does not depend on the network.
|
|
| |
