Dynamic QR code access control, Bluetooth access control, dynamic QR code reader, free APP, pay for firmware modify
- Reading Type: QR Code , Bar code , IC Card ,NFC Card,DES Fire(CPU Card),EV2, Bluetooth（optional ）
- Communication interface: TCP、RS485、RS232 WG 26、WG34
- Metal frame, durable
Product Characteristics
| Material: | metal shell | Output format: | WG26 |
| Ultra-low power consumption: | standby current less than 30mA | Fast search speed: | swipe time to open the door is less than 0.1S |
| Reading model | CMOS | Reading Angle | 360 degrees |
| Read code system | QR code (screen code, paper code) | Lens reading range | About 80 degrees up and down |
| Reading accuracy | ≥mil | Operating voltage | DC5~12V |
| Reading distance | 2.5 ~ 10 cm | Communication interface | Standard with TTL, RS485, Wiegand 26/34; Optional RS232 |
| Qr code recognition speed | < 0.5s | Rain cover dimensions | 150*103*80 (mm)(IP68) |
| Supports simultaneous dual-channel support | Wiegand outputs fixed ID, TTL, and 485 output source code data | Read the success message | buzzer |
| Read card type | Mifare one (IC), mobile NFC, ID card physical number, chip bank card | Support small program two-dimensional code binding IC card number | (Read QR code to output IC card number) |

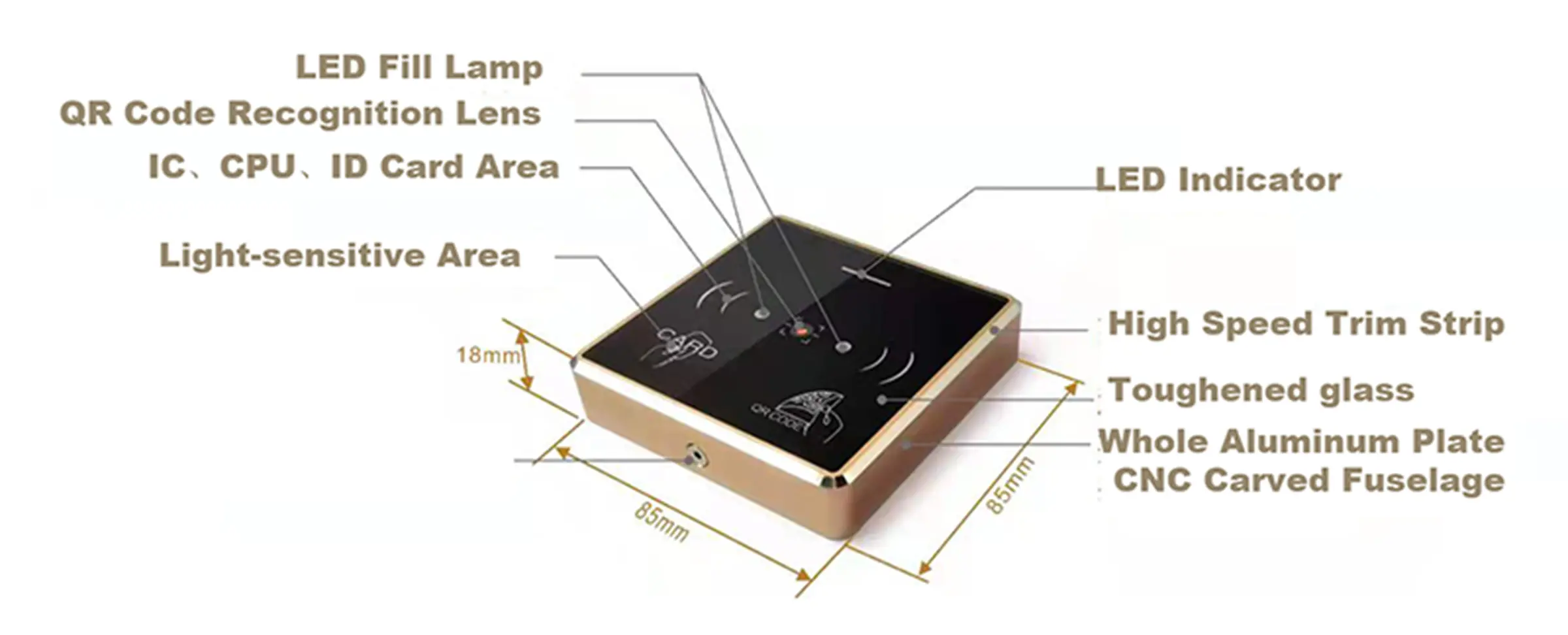

| Body size | 85*85*18 (mm) |
