CR5400-AC 4 Door Cloud Storage Access Controller QR Code TCP/IP HTTP Access Control Board With Free API
- Communication:HTTP、TCP/IP、MQTT
- Extension interface:RS485、232
- Card read protocol: Wiegand26、34

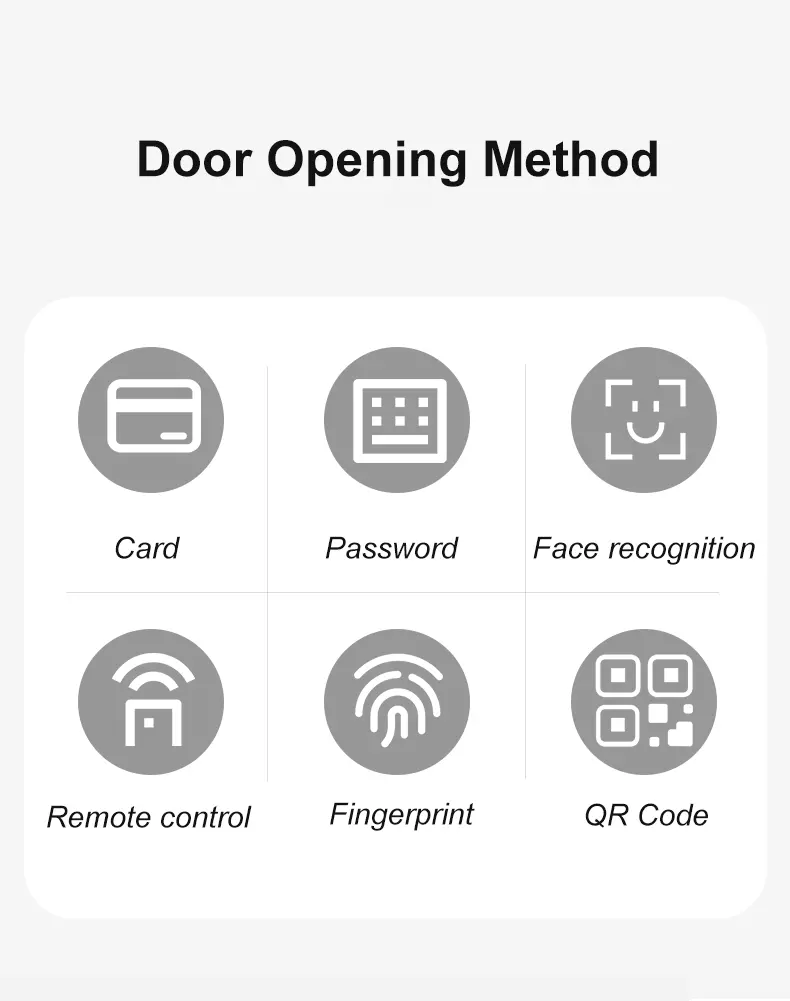

- Door open method:Card, Psw, Software Remote, QR, Barcode, Fingervein, Fingerprint, Face.
Download

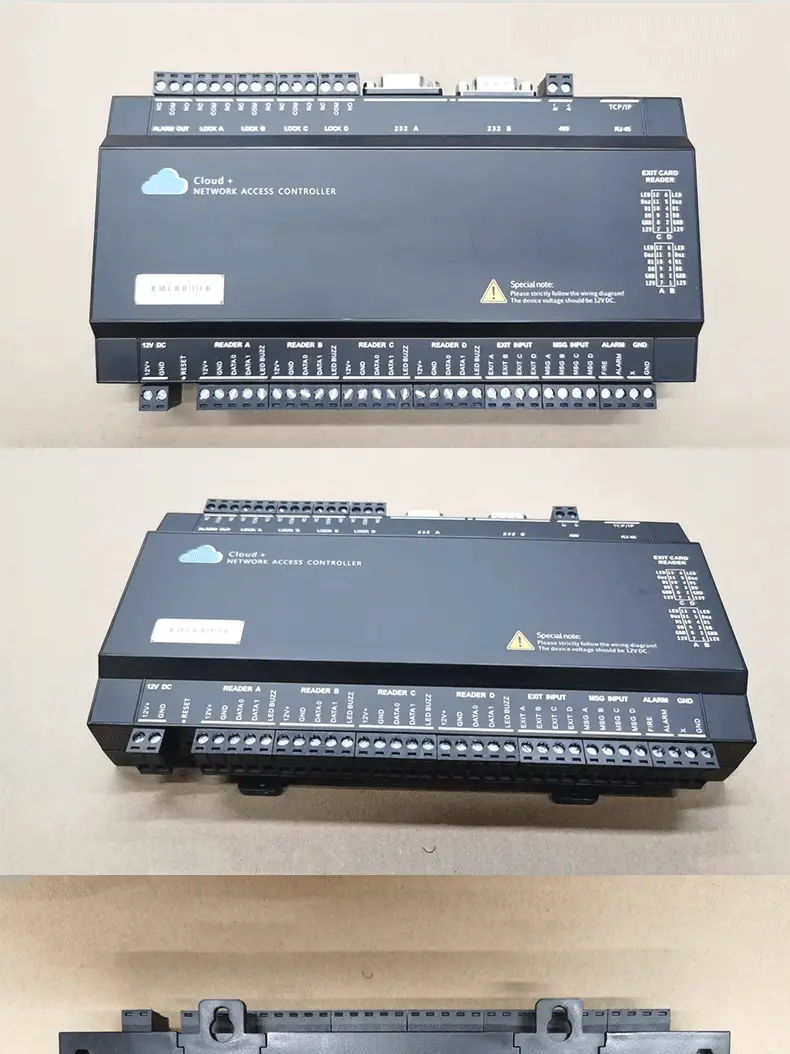

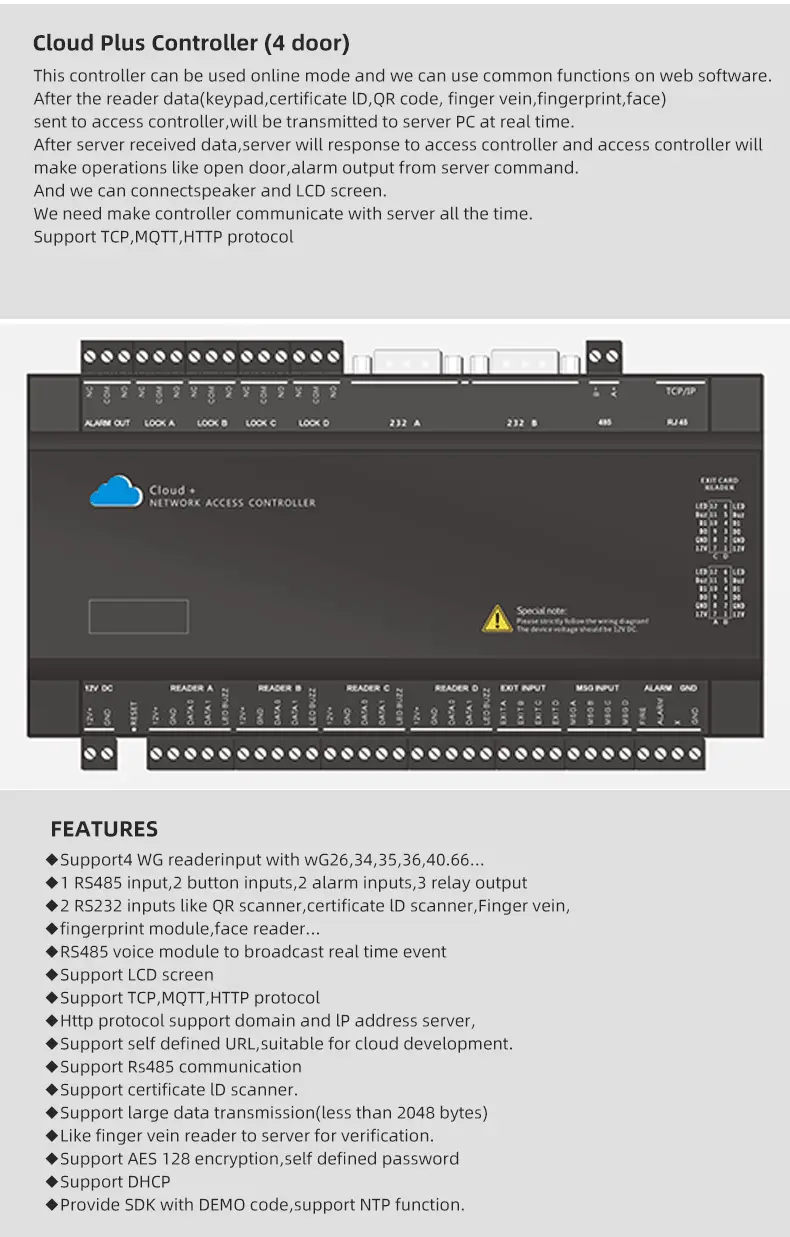

Cloud Plus Controller(4 door)

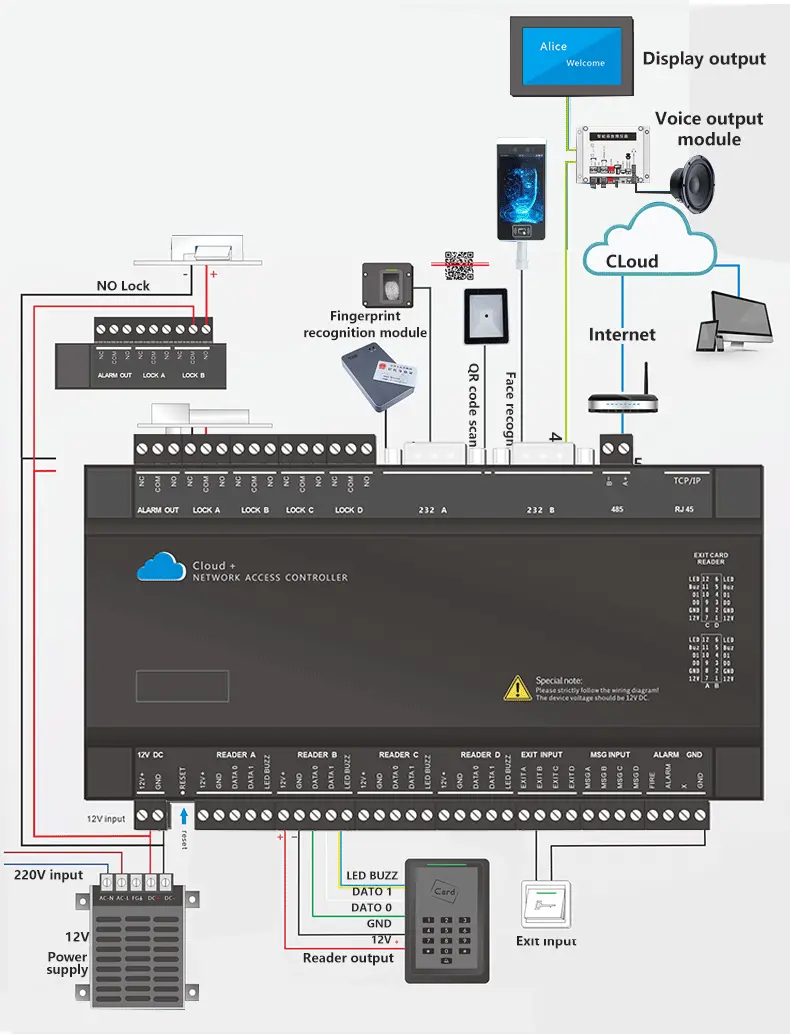

This controller can be used online mode and we can use common functions on web softwareAfter the reader data(keypad, certificate lD, QR code, finger vein, fingerprint, face)sent to access controller, will be transmitted to server PC at real time.After server received data, server will response to access controller and access controller willmake operations like open door, alarm output from server command.And we can connect speaker and LCD screen.We need make controller communicate with server all the time.Support TCP, MQTT, HTTP protocol.
| Brand Name | Cardweb |
| Product Name | Cloud Plus Access Controller |
| Communication Protocol | HTTP, TCP/IP, MQTT |
| Extension Interface | RS485, RS232 |
| Card Read Protocol | Wiegand26, Wiegand34 |
| Power Supply Output | USB 5V |
| Working Voltage | 12V |
| Working Current | <80mA |
| Rated Power | ≤5W |
| Working Temperature | <60°C |
| Door Open Method | Card, Psw, Software Remote, QR, Barcode, Fingervein, Fingerprint, Face. |
